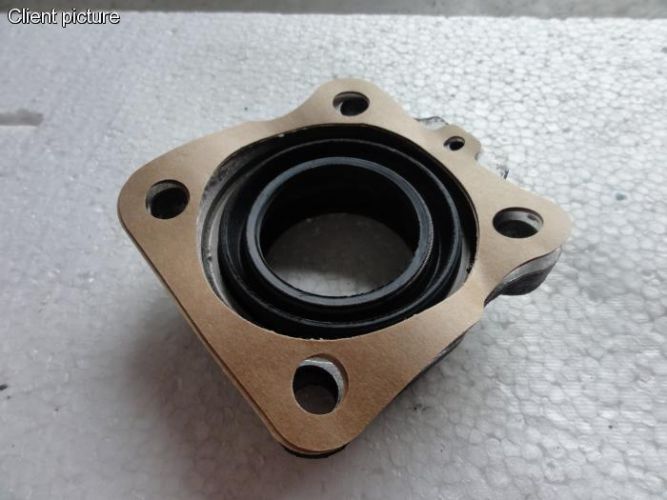

Seal Kit Rear Axle Swing Axle

Seal kit for the rear axle, swing axle.
Seal kit for the rear wheel.
VW Beetle.
Type 14 Karmann Ghia.
T1 Bus - up to 7/67.
VW Type 3.
Type 181 (Thing).

On models with a swing axle gearbox, the gear oil flows through the rear axle to lubricate the bearings. The oil is held back at the rear backing plates by seals, bushes and an oil seal. In case of a leak the gear oil enters the brake drums, reducing or even eliminating the braking effect. Check the seal regularly and replace the seal, O-rings and circlip immediately if necessary.

For all Volkswagens that are not fitted with a reduction gear, two sets are available. A basic set, which not only lacks a few parts but is also of lower quality, and a complete set, which with all wear parts is equal in quality to the original.

If you have a Bus or a VW Type 181, only the basic set is applicable. If you still prefer a higher quality, buy the separate retaining ring and seals (4375 and 1438) in addition to the basic set.

Both sets are supplied for one side.

Note: The complete set is supplied with the outer spacer ring, not to be confused with the inner ring located behind the bearing.
